The mathematics of ocular vision, essentially the physics of how the eye forms images, is primarily based on the “thin lens equation” which states: 1/f+1/do+ 1/di; where “f” is the focal length of the eye’s lens, “do” is the distance from the object to the lens, and “di” is the distance from the lens to the image (retina, neurobiology). It is important to understand these equations for Geometrics of Physics of the Eye, because of their application in Corrective Lense Surgery, Robotics, Neuroscience Research with Physics of the Eye, Veterinary Medicine, and Quantitative Molecular Biology in Neural Functions.

Key points we will discuss during the introduction are the physics of vision, accommodation, magnification, power of the lens, near point, far point, refractive errors, and distant vision.

Accommodation is the point where the eye adjusts its focus by changing the shape of its lens, effectively altering the focal length “f” to see objects at different distances. Magnification is the magnification of an image formed by the eye is calculated using the formula: m+= -di/do. Power of Diopters (D), is the power of the eye lens measured in diopters (D), which is the reciprocal of the focal length in meters. Conceptual Designs in medical imaging that contribute to the classification of vision in mathematics such as laboratory testing of acuity fields. Important concepts related to the mathematics of vision are 1) the time it takes neurobiology mechanisms to store and retrieve the image, and 2) the near point, the closest distance at which an object can be seen clearly. The far point is the furthest distance in which an object can be seen clearly. Applying Actual Sciences to vision is done by simple conceptual steps, such as distant vision testing, near vision testing {Neuro-Opthalmol}. When looking at a distant object “do” is considered to be the infinity (symbol mathematics) and the eye is in a relaxed state with a lower focal power. When focusing on a near object the ciliary muscle contracts, causing the lens to thicken and decrease in focal length, this allows the image to focus on the retina. The light is the exalted power that performs the mechanical sequencing of images into the retina and the neuropathology (cell disruption of cones) within the laboratory brain (neural network){Neuro-Sci} [1-9].

Experimental evidence and imaging systems

This experimental evidence was captured by a Microscopy, and three levels of visual Accuity field were ordered in the experiment (Figure 1. 1-1.4). Near Point, Distance, and Nominal (Figure 1.4). The basic composition of the digital images was arranged in a pixel array representing a series of intensity values and organized (x,y) coordinate system. Electronic Imaging Detectors in this discussion are intended to aid in understanding the basics of light detection and to provide a guide for selecting a suitable electronic detector for specific applications in optical microscopy (Figure 1.3). Also, the images we produced in the Molecular and Focal Lense were from interactive Java Tutorials (Figure 1.3). The processing technique was utilized for patenting the digital microscope to produce a uniform background for digital images from the neuro-ophthalmic mechanism, and integrity of specimens in DP-10 (Figure 1.4). In this article, the unique qualities of this Geometric Physics case study of the Eye in association with Neuropathology will be integrated into Cognitive Functioning, Clear Vision, Robotics, and Interventional Procedures for Corrective Lense Surgery (Figure 1.2 and Figure 1.3] {Neuro-Opthalmol}

Figure 1.1: Latest Innovations provide a digital color camera system, that utilizes light and imaging technology for microscopy application to Neuro-Ophthalmic Sciences.

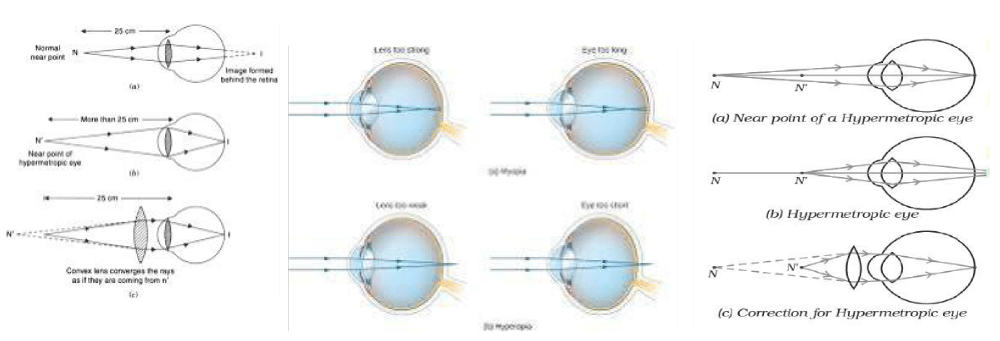

Figure 1.2-4: N (M/F) Molecular and Focal Lense shows in sequence [1.2] Normal Near Point Diagram [1.3]Lens to Eye Diagram[1.4] Correction for Hypermetropic Eye in sequence, so the mathematical quantitative reasoning of explaining vision and length, and (a) near point hypermetric eye (b) hypermetric eye (c) correction for hypermetric eye. The lenses in associated with the visual Accuity field in which near point and distant point conduct image sequencing into the Neurobiological Mechanisms forensically.

Located at Licensed Facility Merck-Berkinau LD Labs PTY LTD.

Physics of the eye and the lens equation “Biometrics of Clinical Ophthalmology”

Summary:

1. Explain the image formation by the eye
2. Explain why the peripheral images lack detail and cooler
3. Define refractive indices.
4. Analyze accommodations of the eye to near vision.

The eye is perhaps the most interesting of all optical instruments. The eye is remarkable in how it forms images and in the richness of detail and color, it can detect (Figure 1.3). However, our eyes commonly need some correction, to reach what is called “normal” vision, but should be called ideal rather than normal (Figure 1.4). Image formation by our eyes and common vision correction are easy to analyze with the optics discussed in Geometric Optics and Biometrics of Vision.

Figure 1.5 shows the basic anatomy of the eye. The cornea and lens form a system that, to a good approximation, acts as a single thin lens. For clear vision, a real image must be projected onto the light-sensitive retina, which lies at a fixed distance from the lens. The lens of the eye adjusts its power to produce an image on the retina for objects at different distances. The center of the image falls on the fovea, which has the greatest density of light receptors and the greatest acuity (sharpness) in the visual field. The variable opening (or pupil) of the eye along with chemical adaptation allows the eye to detect light intensities from the lowest observable to 1010 times greater (without damage). This is an incredible range of detection is pathological to sequencing the formula and equation for Clinical Opthalmology Cases. Our eyes perform a vast number of functions, such as sensing direction, movement, sophisticated colors, and distance (Figure 1.5). Processing of visual nerve impulses begins with interconnections in the retina and continues in the brain. The optic nerve conveys signals received by the eye to the brain {Neuro-Sci}.

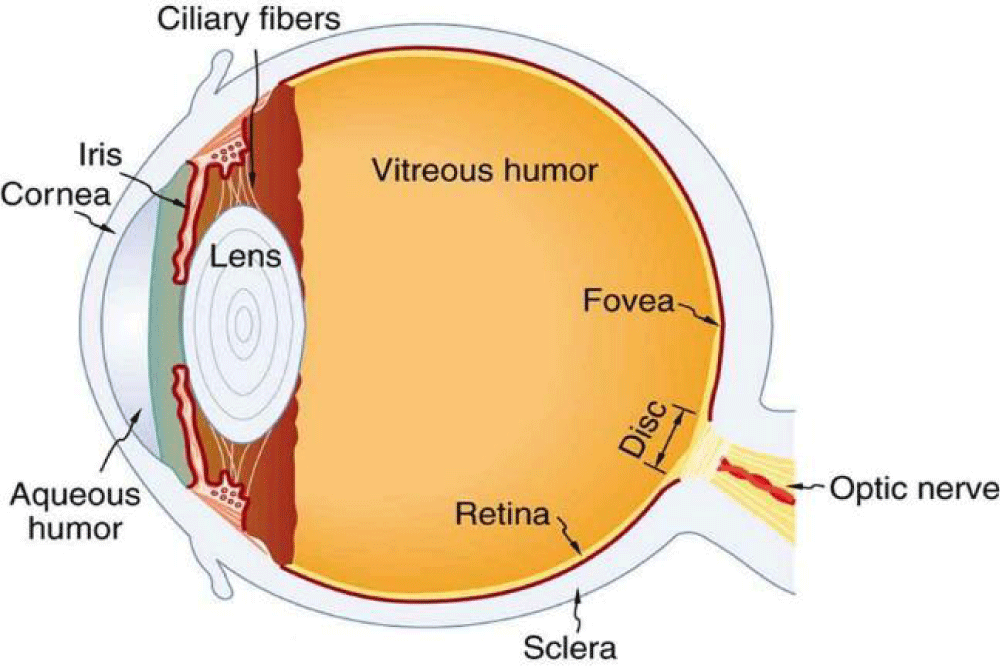

Figure 1.5: The cornea and lens of an eye act together to form a real image on the light-sensing retina, which has its densest concentration of receptors in the fovea and a blind spot over the optic nerve. The power of the lens of an eye is adjustable to provide an image on the retina for varying object distances. Layers of tissues with varying indices of refraction in the lens are shown here. However, they have been omitted from other pictures for clarity.

Refractive indices are crucial to image formation using lenses. Figure 1.2 shows refractive indices relevant to the eye. The biggest change in the refractive index, and bending of rays, occurs at the cornea rather than the lens. The ray diagram in Figure 1.3 and Figure 1.4 shows image formation by the cornea and lens of the eye. The rays bend according to the refractive indices provided in Figure 1.2. The cornea provides about two-thirds of the power of the eye, because the speed of light changes considerably while traveling from air into the cornea. The lens provides the remaining power needed to produce an image on the retina (Figure 1.5). The cornea and lens can be treated as a single thin lens, even though the light rays pass through several layers of material (such as cornea, aqueous humor, several layers in the lens, and vitreous humor), changing direction at each interface. The image formed is much like the one produced by a single convex lens. This is a case 1 image. Images formed in the eye are inverted but the brain inverts them once more to make them seem upright.

As noted, the image must fall precisely on the retina to produce clear vision — that is, the image distance di must equal the lens-to-retina distance. Because the lens-to-retina distance does not change, the image distance di must be the same for objects at all distances. The eye manages this by varying the power (and focal length) of the lens to accommodate objects at various distances. The process of adjusting the eye’s focal length is called accommodation. A person with normal (ideal) vision can see objects clearly at distances ranging from 25 cm to essentially infinity (Figure 1.2, and Figure 2.1). However, although the near point (the shortest distance at which a sharp focus can be obtained) increases with age (becoming meters for some older people), we will consider it to be 25 cm in our treatment here.

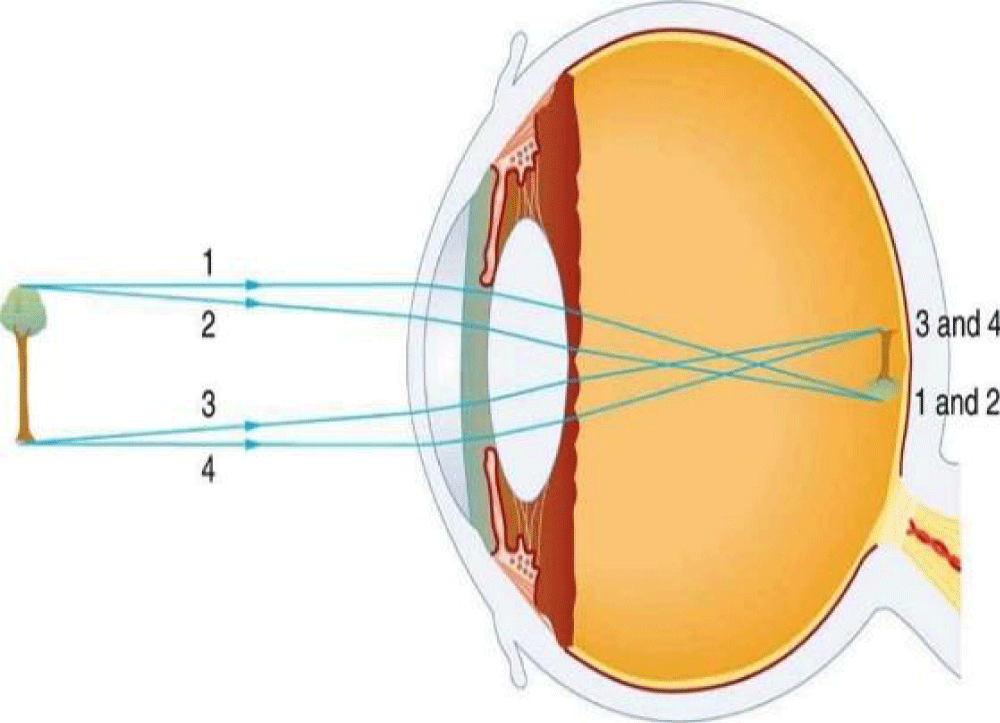

Figure 2: An image is formed on the retina with light rays converging most at the cornea and upon entering and exiting the lens. Rays from the top and bottom of the object are traced and produce an inverted real image on the retina. The distance to the object is drawn smaller than the scale.

Figure 3.1 Explanation: shows the accommodation of the eye for distant and near vision. Since light rays from a nearby object can diverge and still enter the eye, the lens must be more converging (more powerful) for close vision than for distant vision. To be more converging, the lens is made thicker by the action of the ciliary muscle surrounding it. The eye is most relaxed when viewing distant objects, one reason that microscopes and telescopes are designed to produce distant images (Figure 2.1 and Figure 1.4). Vision of very distant objects is called relaxed, while close vision is termed accommodated, with the closest vision being fully accommodated. {Opthalmol}

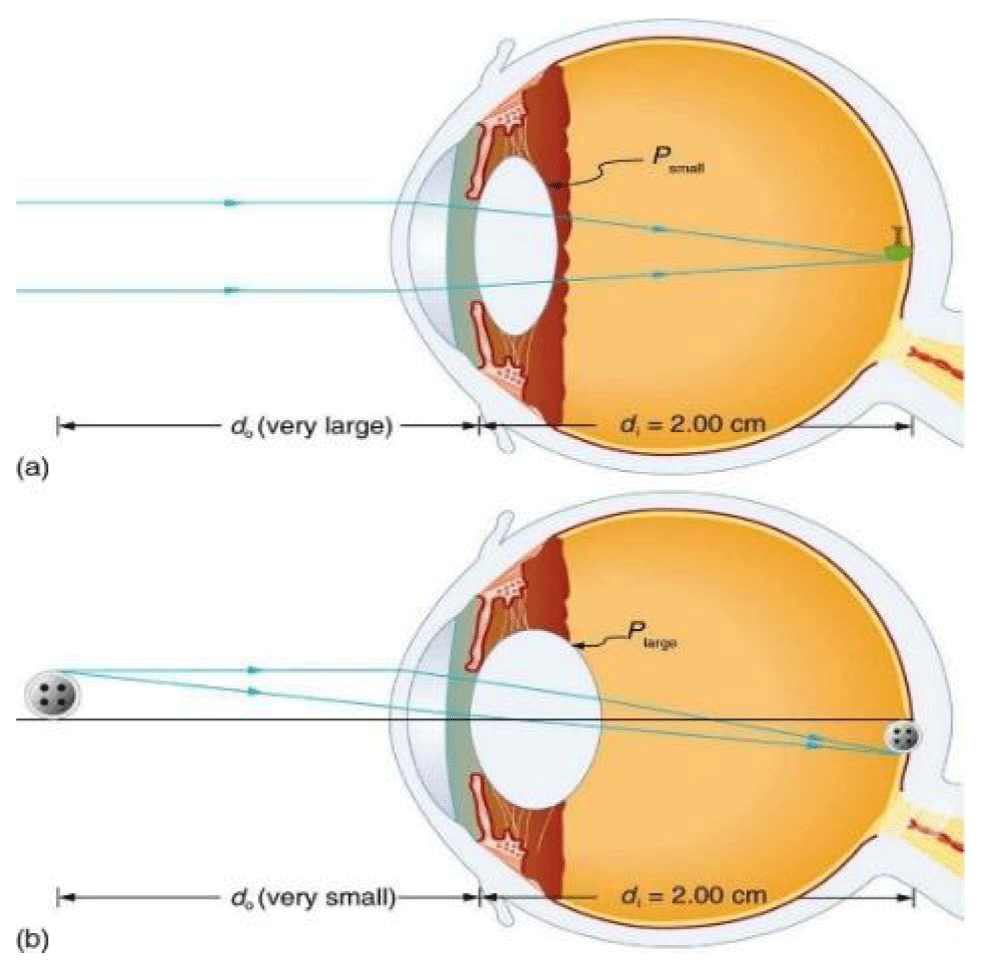

Figure 3.1: Diagram: A/B Relaxed and accommodated vision for distant and close objects. (a) Light rays from the same point on a distant object must be nearly parallel while entering the eye and more easily converge to produce an image on the retina. (b) Light rays from a nearby object can diverge more and still enter the eye. A more powerful lens is needed to converge them on the retina than if they were parallel.

We will use the thin lens (Figure 3.2), equations to examine image formation by the eye quantitatively. First, note the power of a lens is given as P=¹/_f, so we rewrite the thin lens equations in this format for Clear Vision (Figure 3.1 and Figure 1.4)

Figure 3.2: The Microscopic Eye Lens.

P=1do+1diP=1do+1di

D= di +do

And (Vision Lens equation and formula)

hiho=−dido=m.hiho=−dido=m.

We understand that d_i must equal the lens-to-retina distance to obtain clear vision and that normal vision is possible for objects at distances d_o = 25 cm to infinity. {Arch Opthalmol}

Conceptual physics of vision and neuropathology: strategy in mathematical quantitative reasoning

Conceptual physics of vision and neuropathology: strategy in mathematical quantitative reasoning

For clear vision, the image must be on the retina, and so d_i = 2.00 cm here. For distant vision, d_o ≈ ∞, and for close vision, d_o = 25.0 cm, as discussed earlier. The equation P=1do+1diP=1do+1di as written just above, can be used directly to solve for P in both cases, since we know d_i and d_o. Power has units of diopters, where 1 D = 1/m, so we should express all distances in meters. (P) Power, (M) Unit of Measurements, (D) Diopters, (F) Focal, (VA) Magnification (Geometric Optics Symbols and Equations) (Figure 3.1) (Figure 1.5).

The solution in understanding physics and conceptual mathematics

For distant vision (Figure 3.1) formulated equation {Arch Opthalmol}

P=1do+1di=1∞+10.0200m.P=1do+1di=1∞+10.0200m.

Since 1/ ∞ = 0, this gives,

P = 0 + (50.0) / (m) = 50.0 D (distant vision).

Now, for close vision (Figure 1.3),

P=1do+1di=10.250m+10.0200m=4.00m+50.0m=P=1do+1di=10.250m+10.0200m=4.00m+50.0m= 4.00 D + 50.0 D= 54.0 D

Methodology to ocular biological physics

The Spectrum provides molecular data into the Physics of the Eye, then mathematical quantitative measurements of Accuity fields, Image 2- Shows three layers of the Crystalline lens, and lastly, the images formed and stored in the Neurobiological Mechanisms (Figure 4.1).

Figure 4.1: Image 1- Shows Normal Eye in the Refractive lenses, we test through Laser Camera-Based Imaging in Radiology Laboratories for Neurobiology Mechanisms.

We experimented with a Neurophysics Case Medical Imaging, to deal with the development of mechanisms to Quantify understanding of neural processes concerning ocular process (vision). The method we applied to the experiment was an ECG/EEG to perform further physical measurements of electrical, mechanical, and fluidic properties. This was to bridge the phase transition from vision to neural. Our experiment prognosis anomaly is a visual Accuity field associated with neural phase dystrophy called (SANS) Spaceflight associated neuro-ocular syndrome, where a unique set of neuro-ophthalmic symptoms associated with long-duration space flight documented in Aerospace Medicine Case Studies. The way this is mitigated is through Satellite Office, aboard ISS (International Space Station) Occupational Safety Agencies. This is important to continue to study the phases of transition for Aeronautics, Industrial Aerospace, Ship Crew, Scubadivers, and ext. the microgravity of neuro-ophthalmologic effects obtained by Counter measure testing equipment manufactured for Opthalmology and Neuro-Opthalmology specialties.

Conclusion

In contrast to resolution images, we DE-convoluted the theory of the Physics of the Eye in association with Neuro-ophthalmic features. By explaining the physics and mathematical quantitative reasoning, and providing a Medical Imaging Case, we incorporated our innovation, and patent, and utilized our time to gather evidence and design a critical color photomicrography -Neuro-Opthalmol. We used Physical Sciences, Pathology, Material Sciences, Natural Sciences, and conclusively Life Sciences to find evidence and provide image-processing applications of this Science to New Virtual Microscopy into the Eye and Neuro-Opthalmic Mechanisms. Future Research can further this study into Geometrics of the Eye, Optics and Photons, Physics and Neurobiology, Neurochemistry and Disruptions in Visual Accuity Fields, and Biometrics Equations of Vision and Neural Functionality-Arch Opthalmol. Future Research can also incorporate this article into Veterinary Science and Industrial Engineering of Corrective Lense.

CC Licensed international attribution 4.0.

College Physics. Authored by: Unilabs BP/FIB College. Located at: http://unilabsbiophysics.com. License: CC BY: Attribution. International License Terms: Located at License FIS/FIB DEA 50044

Scholastics. Authorized by: Unilabs Dr. V Lunde Dadon MD. U-CG Hormone and Chemical Societies. Vol 36 pp 135-180. 347DC.

Patented Optical Imaging Camera- Part of Laboratories, and Neuropathology Lab for UV/Vision/Vision Testing and Optical Lense Manufacturing, DEA License 50044, Arctic Regulatory Commission- Academic Research Institute (AHI).

Competing interest/Declaration of competing interests: We don’t provide teaching material outside our Private Institution and our Privately Owned Laboratories.
